TECHNICAL SPECIFICATION
MODEL | FCHD30 | FCHD45 | FCHD60 |
CUTTING DEPTH | 30 cm | 40 cm | 55 cm |
MAX. CUTTING DEPTH | 35 cm | 48 cm | 62 cm |
USING SAW BLADE | Ø600 – Ø900 mm | Ø700 – Ø1200 mm | Ø800 – Ø1500 mm |
PROGRESS | Full Automatic Hydrostatic | Full Automatic Hydrostatic | Full Automatic Hydrostatic |
POWER TRANSMISSION | Hydrostatic | Hydrostatic | Hydrostatic |
WEIGHT | 800 kg | 950 kg | 2100 kg |
CUTTING DEPTH SETTING | Hydrostatic | Hydrostatic | Hydrostatic |
WATER TANK CAPACITY | External 12V Motopomp | External 12V Motopomp | External 12V Motopomp |
DIMENSIONS (WxLxH) | 850x1700x1250 cm | 1000x2400x1450 cm | 1350x3000x1850 cm |
NIGHT LIGHTING | STANDART | STANDART | STANDART |
ENGINE | Diesel Lombardini 42 HP | Diesel Hatz 72 HP | Yavuz Diesel 135 HP |

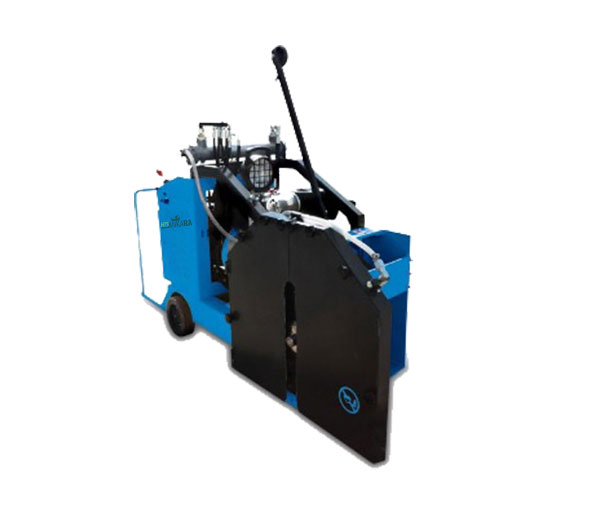

Our FCHD Series Joint Concrete Asphalt cutting machines have a fully automatic walking system.
It is a complete heavy-duty machine and is designed for your deep cutting long-length work.
Our FCHD series Joint Concrete Asphalt cutting machines special for your high power and performance oriented works without tiring the user.
Concrete asphalt cutters are a machine designed to cut a certain width and depth on asphalt or concrete surfaces. These machines are used in many different sectors such as road construction, concrete floors, maintenance and repair work.
Joint asphalt cutters are machines with different features. For example, features such as cutting depth, cutting width, engine power and water cooling system differ according to the intended use and needs of the machines.
These devices are used in many areas such as road construction and repair and infrastructure works. Joint asphalt cutters increase work efficiency by accelerating the cutting process and allow the cutting process to be done more precisely and properly.
USED CUTTING BLADE
Ø600 mm CONCRETE BLADE
Ø600 mm ASPHALT BLADE
Ø700 mm CONCRETE BLADE
Ø700 mm ASPHALT BLADE
Ø800 mm CONCRETE BLADE
Ø800 mm ASPHALT BLADE
Ø900 mm CONCRETE BLADE
Ø900 mm ASPHALT BLADE
Ø1200 mm CONCRETE BLADE
Ø1200 mm ASPHALT BLADE
Ø1500 mm CONCRETE BLADE
Ø1500 mm ASPHALT BLADE
