HTSK ELECTRICAL / GASOLINE CONVERTER AND CONVERTER TYPE INTERNAL VIBRATORS

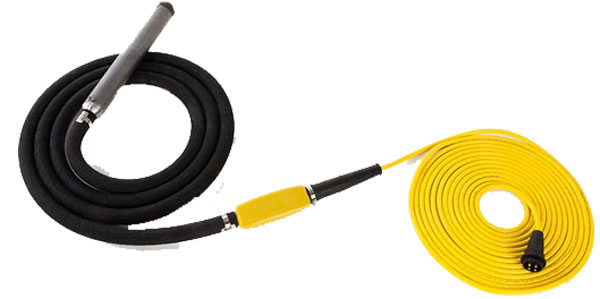

TECHNICAL SPECIFICATION
| HTS ANKARA MACHINE CONVERTER TYPE INTERNAL VIBRATORS | |||||||
| TYPE DIAMETER MM | FREQUENCY HZ | RPM/MIN | VOLTAGE | AMPER | POWER KW | HOSE LENGTH | CABLE LENGTH |
| HTSK 40 | 200 | 12000 | 42-55 | 3X8 | 0,5 | 5 MT | 13 MT |
| HTSK 50 | 200 | 12000 | 42-55 | 3X10 | 0,8 | 5 MT | 13 MT |
| HTSK 58 | 200 | 12000 | 42-55 | 3X15 | 1,1 | 5 MT | 13 MT |
| HTSK 60 | 200 | 12000 | 42-55 | 3X20 | 1,5 | 5 MT | 13 MT |
| HTSK 65 | 200 | 12000 | 42-55 | 3X22 | 1,7 | 5 MT | 13 MT |
| HTSK 75 | 200 | 12000 | 42-55 | 3X25 | 1,9 | 5 MT | 13 MT |
| HTSK 80 | 200 | 12000 | 42-55 | 3X26 | 2,1 | 5 MT | 13 MT |

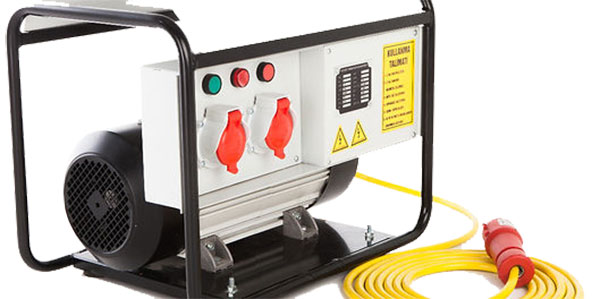

TECHNICAL SPECIFICATION
| HTS ANKARA MACHINE ELECTRICAL CONVERTER | ||||||||
| TYPE | INPUT | OUTPUT | POWER | POWER POINT | ||||
| VOLTAGE | FREQENCY | AMPER | VOLTAGE | FREQUENCY | AMPER | KW | ||
| HTSKE2 | 380 | 50 HZ | 4,9 | 42-55 | 200 HZ | 30 | 2,2 | 2 |
| HTSKE3 | 380 | 50 HZ | 7 | 42-55 | 200 HZ | 45 | 3,2 | 2 |
| HTSKE4 | 380 | 50 HZ | 8,6 | 42-55 | 200 HZ | 60 | 4 | 3 |

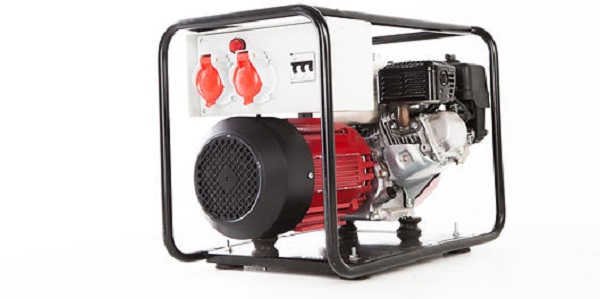

TECHNICAL SPECIFICATION
| HTS ANKARA MACHINE GASOLINE CONVERTER | ||||||
| ENGINE TYPE | HONDA GX160 | ALTERNATOR TYPE | HTSBK | |||
| POWER | 5,5 HP | OUTPUT VOLTAGE | 42-55 V | |||
| CYLINDER VOLUME | 163 cc | AMPER | 27 A | |||
| RPM | 3000 rpm | FREQUENCY | 200 HZ | |||
| TANK CAPACITY | 3,6 LT | RPM | 3000 rpm | |||
| OIL CAPACITY | 230 GR HPM | POWER POINT | 2 | |||
| AIR COOLED | WEIGHT | 52 KG | ||||
Concrete internal vibrators with converter are used to remove the air in the concrete mix and to ensure the compaction of the concrete.
Concrete internal vibrators with converter are used in the construction industry to increase the quality and durability of concrete. These devices are generally used in the construction of thick and bulky concrete structures. For example, it can be used in bridges, dams, buildings, roads, airports and other large construction projects.
Concrete internal vibrators with converter have a quieter and less energy consuming structure than mechanical vibrators.
Internal vibrators with converter differ according to their dimensions and features, and the model should be selected according to the purpose of use. The use of concrete internal vibrators is important to increase the quality of concrete and to obtain a more durable structure.
